Magio I/O modules
One module type for all automation
Magio I/O modules are fully universal. Both analog and digital input and output signals can be connected to the module. One module type for all automation!
Universal I/O
Magio I/O modules are fully universal

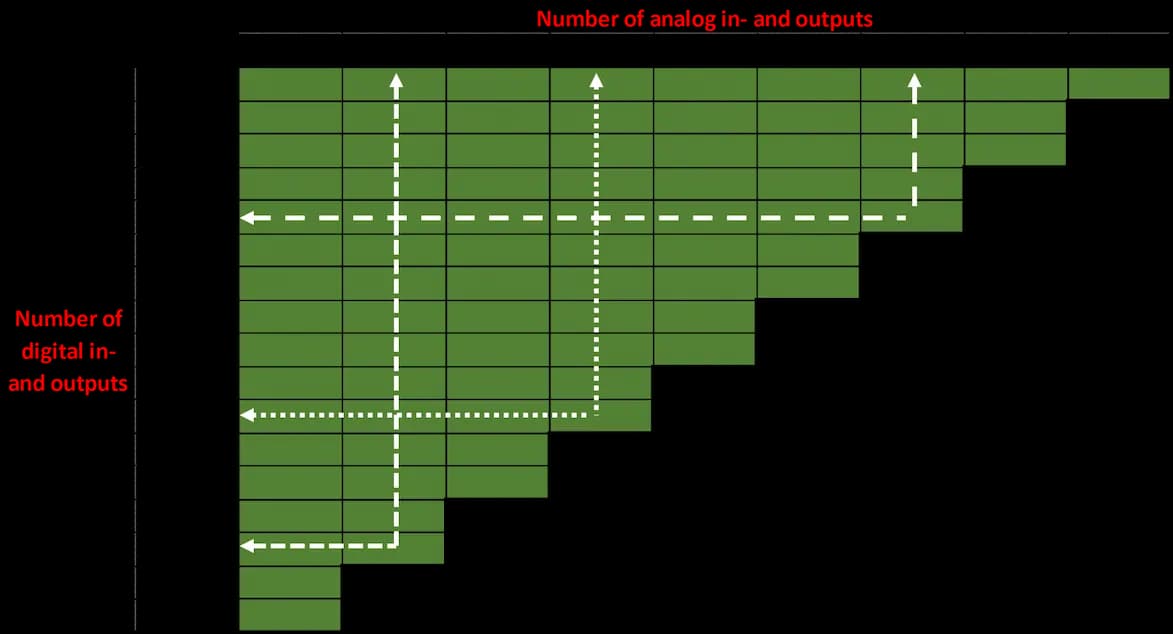

Magio I/O modules can connect both analog and digital input and output signals. Magio I/O modules have a maximum of 8 analog or 16 digital freely configurable universal I/O connections. They can be programmed for any mode: AI, AO, DI or DO. The same module can include both digital and analog input and output signals. The combined total of digital and analog signals can be at most 16.
8
maximum analog I/O connections
16
maximum digital I/O connections
AI / AO / DI / DO
freely configurable modes
Actuator condition monitoring
The module monitors the current drawn by the actuator while supplying the actuator with 24V DC voltage.
Faster fault location
Abnormal current values help narrow the fault down quickly to the actuator, cabling or load.
Alarm to the automation system
When the measured current rises above or falls below the configured limits, the exception can be forwarded to the automation system as a clear alarm.
Fault detection
Magio modules detect faulty actuators
A Magio I/O module can supply the 24V DC voltage required by actuators and measure the current drawn by the actuator at the same time. When current values deviate from the configured limits, the automation system can generate an alarm and help identify a failing actuator in time.
Product family
Magio Serial M and Magio Ethernet M
The Magio product family includes Magio Serial M and Magio Ethernet M I/O modules using the Modbus protocol. The modules suit flexible and distributed automation systems.
Magio Serial M
Magio Serial M is a universal I/O module that uses the Modbus RTU protocol on an RS485 bus.
- Modbus RTU communication on RS485 bus
- DIN rail mounting and universal I/O connections
- Fits distributed automation systems

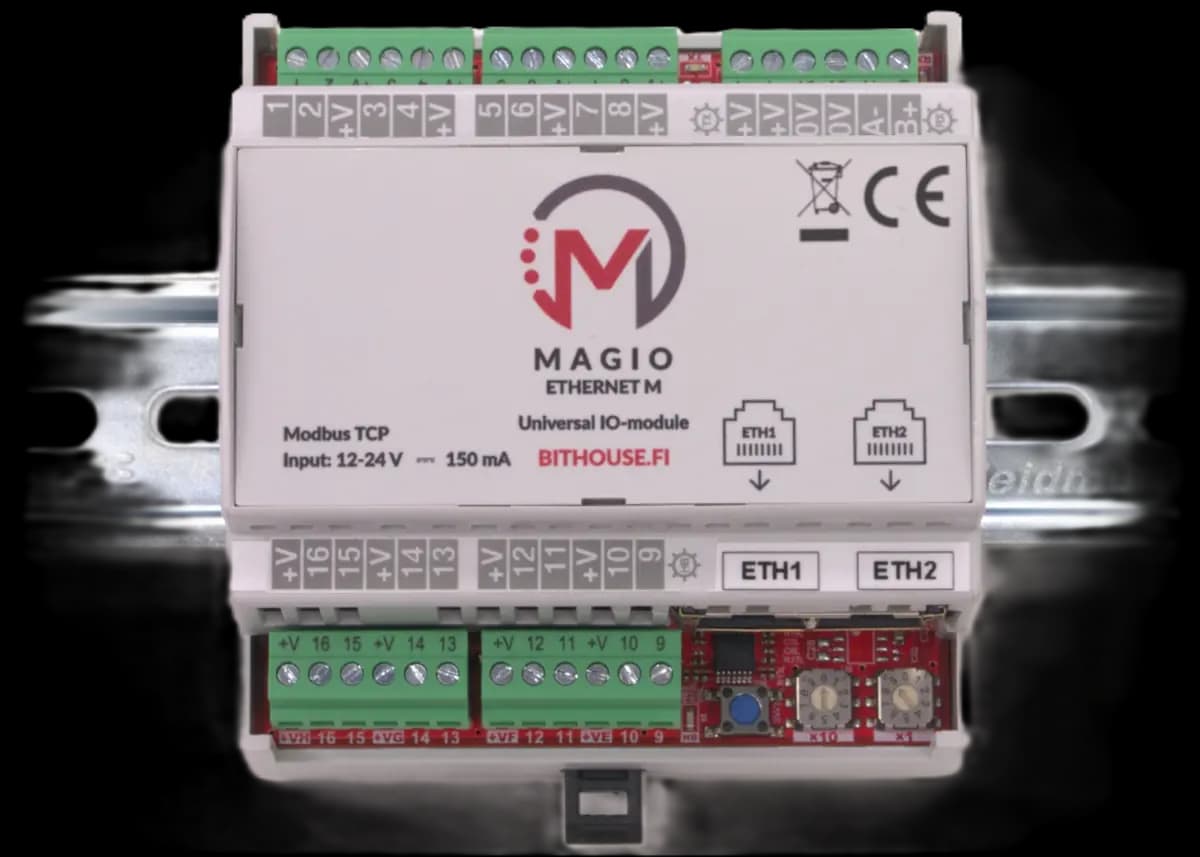

Magio Ethernet M
Magio Ethernet M is a Modbus I/O module with two Ethernet connectors. With its RS485 connector, it can also be used as a gateway for Serial modules.
- Two Ethernet connectors for Modbus TCP use
- RS485 connector for gateway use with Serial modules
- Allows modules to be located in different properties
Configurable connections
What the I/O modes do in practice
Universal I/O defines the capacity. This section explains the modes by practical use case so the right connection can be selected point by point.
AI
Analog input
Analog measurements such as temperature, air quality and other condition signals.
AO
Analog output
Control signals for actuators and other devices that need analog control.
DI
Digital input
Alarms, indications, status data and pulse-type signals.
DO
Digital output
Relay controls, on/off controls and other digital output signals.
Technical Data
Magio Serial M and Magio Ethernet M
| Feature | Magio Serial M | Magio Ethernet M |
|---|---|---|
| Communication | I/O module using Modbus RTU protocol on an RS485 bus. | Modbus I/O module with two Ethernet connectors and an RS485 bus. |
| Gateway use | Can be connected as a slave device to a Magio Ethernet M module. | Magio RS485 modules can be connected to the module, allowing Ethernet M to operate as an Ethernet gateway. |
| Board dimensions | 87 × 84 mm, 5 DIN modules. | 87 × 84 mm, 5 DIN modules. |
| I/O connectors | 16 I/O connectors that can be used universally. | 16 I/O connectors that can be used universally. |
| AI and AO points | An AI or AO point reserves two consecutive I/O connectors, for example 1+2 or 3+4. | An AI or AO point reserves two consecutive I/O connectors, for example 1+2 or 3+4. |
| DI and DO points | A DI or DO point reserves one I/O connector. | A DI or DO point reserves one I/O connector. |
| Operating voltage | Regulated 12–24 V DC. | Regulated 12–24 V DC. |
| Maximum load | 1 A per channel, 6 A total for the whole board. | 1 A per channel, 6 A total for the whole board. |
| Board power consumption | Nominal 75 mA, 24 V: 1.8 W. | Nominal 75 mA, 24 V: 1.8 W. |
| Connectors and wire | Available with screw or spring terminals. Maximum wire cross-section 1.5 mm². | Available with screw or spring terminals. Maximum wire cross-section 1.5 mm². |
| Bus | Modbus RTU bus. | Ethernet connections and RS485 bus for Modbus use. |
