BVV SMS gateway
Convert email alarms locally into text messages
Magio BVV SMS gateway converts email alarms sent by an automation system locally and directly into text messages, ensuring reliable message delivery without cloud service dependencies.
Alarms into text messages
Local conversion without a cloud service

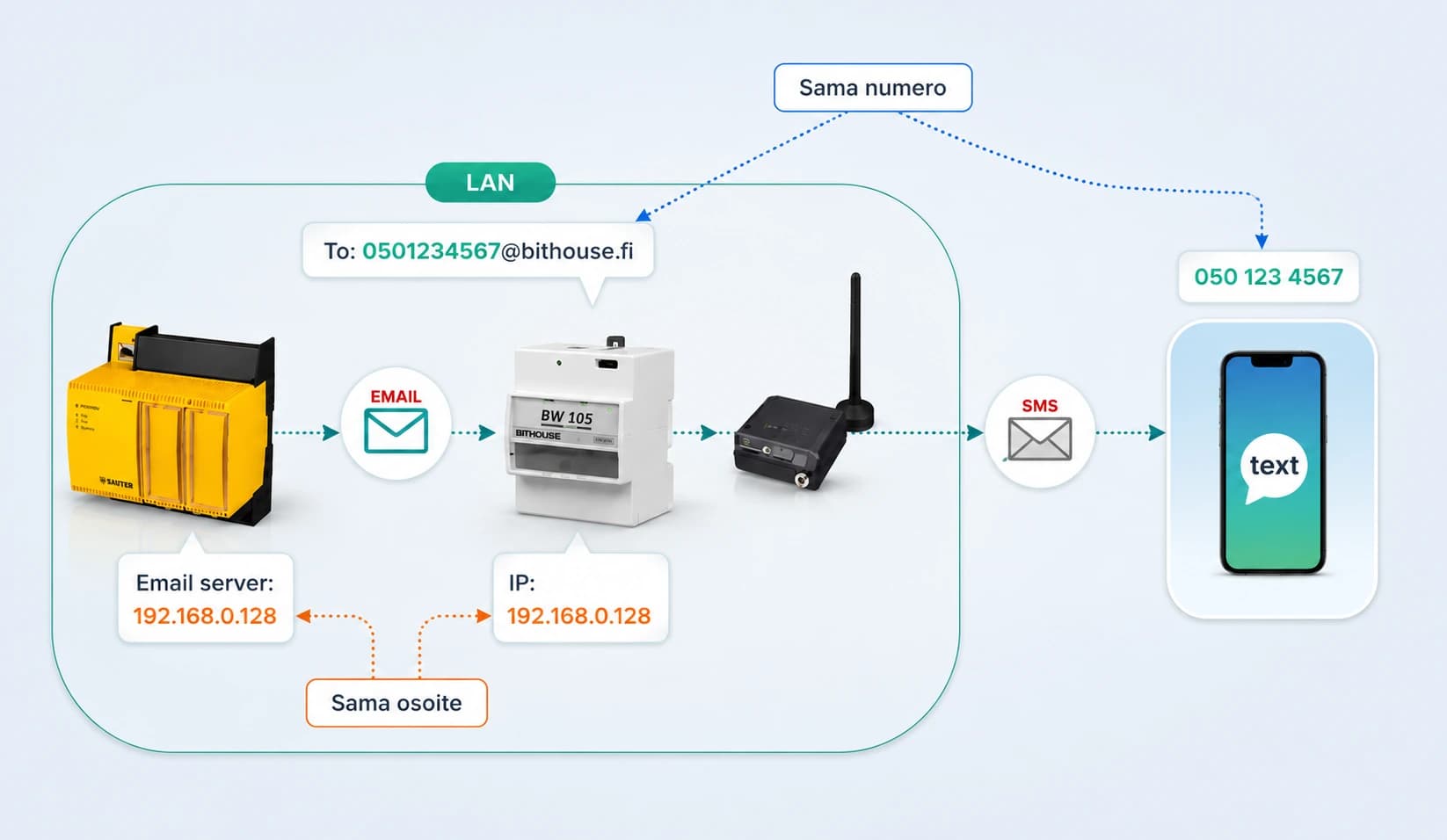

BVV receives the email alarm sent by the automation system locally and forwards it as a text message directly to the configured recipients.
Because the conversion happens locally, alarm messaging is not dependent on a separate cloud service. The solution suits sites where reliable message delivery and clear maintenance matter.
Key benefits
Clear and practical message delivery
- Converts email alarms locally into text messages
- No cloud service dependency
- Fast notification to the right people
- Suitable for automation and monitoring systems
Technical Data
BVV-105 E-mail-SMS Gateway
Key technical data for the BVV-105 E-mail-SMS Gateway.
| Feature | Value |
|---|---|
| Operating principle | Local SMTP server that receives email messages and forwards numeric recipients as text messages through a GSM modem. |
| User interface | Browser-based user interface for configuration and commissioning. |
| Supply voltage | 5 V DC. |
| Supply current | Below 500 mA. |
| Ethernet | 1 x 10/100 Mbps. |
| Connections | USB 1 pc, MicroSD 1 pc, maximum 32 GB card. |
| Integrations | SMTP server, Modbus TCP/RTU and BACnet/IP. |
| IP rating | IP20. |
| Enclosure material | PC / ABS plastic. |
| Operating temperature | -40 ... 85 °C, relative humidity below 95%. |
| Dimensions and weight | 72 x 91 x 63 mm (W x H x D), 130 g. |
Do you need a BVV SMS gateway for your site?
Tell us the alarm count, recipients and connection method, and we will design a suitable implementation.
Contact us
