Integral universal substation processor
One processor, unlimited possibilities
Integral adapts to your automation system with six freely selectable module slots. One device can handle control, communication and system integrations according to site requirements.
Modular structure
Six freely selectable module slots
Integral is a modular system built around a powerful processor board. The I/O mix and fieldbus communication interfaces can be defined project by project with selectable Integral modules.
- The same processor can be adapted to different sites with module choices
- Modules can be changed and added as requirements evolve
- Only the needed I/O and bus interfaces are selected for the configuration
Choose modules for the site
The illustration shows how different modules can be placed freely into the Integral processor module slots.
Integral modules
A powerful processor with selectable I/O and bus modules
With modules, each processor can be configured for the exact site requirements. The same device can combine analog and digital I/O points, M-Bus meters, RS485 buses and USB-C connections.

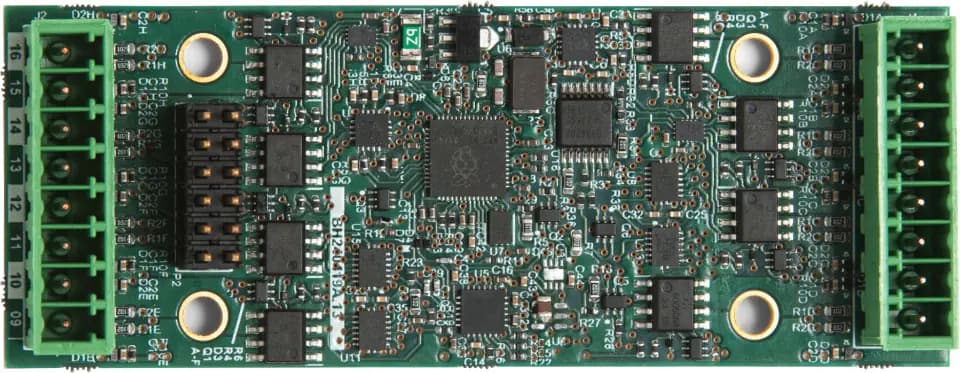

IM-IO816
Universal I/O module
The module can connect up to eight analog or sixteen digital input or output signals. The same module can include both analog and digital signals.

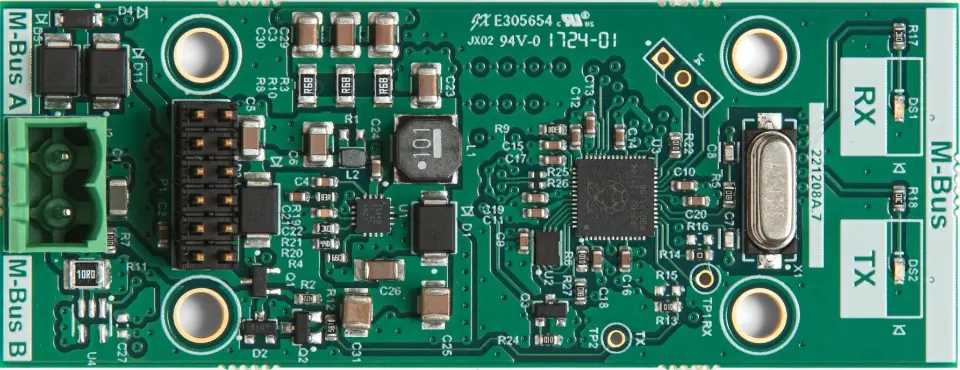

IM-MBUS20
M-Bus module
Designed for connecting M-Bus devices to the Integral processor. Up to twenty M-Bus devices can be connected to one module.

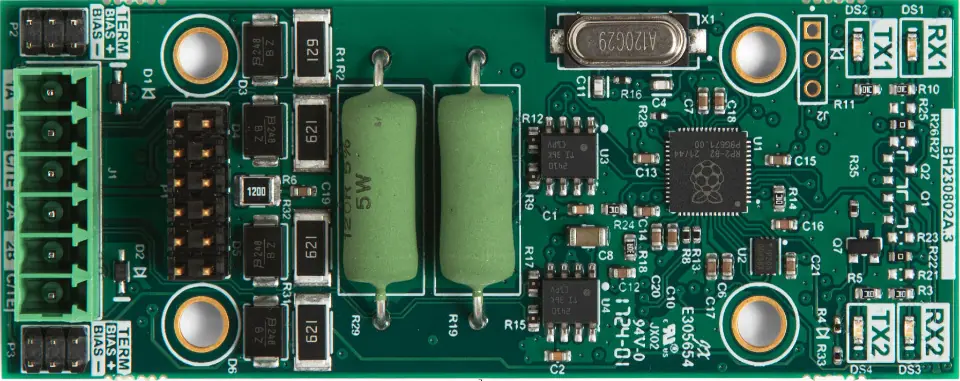

IM-RS485
Two RS485 buses
The module can connect devices such as Modbus RTU devices with different communication speeds to the Integral processor.

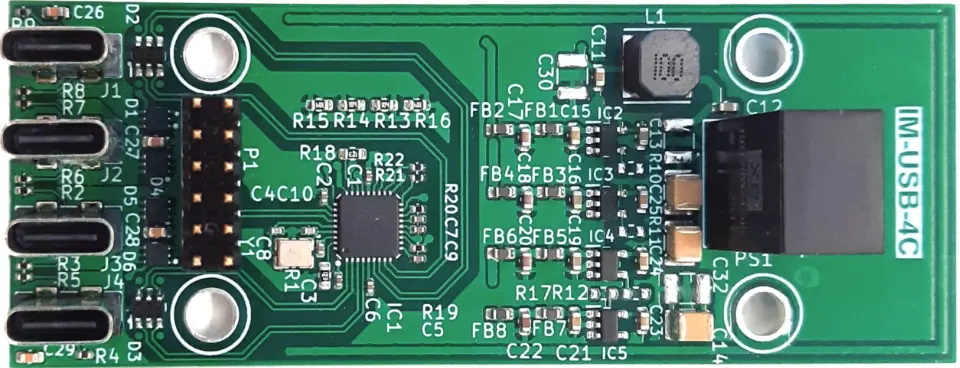

IM-USB-4C
Four USB-C connections
The USB-C module adds four USB-C connections for different device and system interfaces.
Designed for flexibility
One device for local operation, remote connections and integrations
The processor board handles control, data processing and system management. Ethernet, 4G and touchscreen options make the device suitable for local operation, building automation integrations and cloud connections.
4G modem readiness for remote connections and cloud use
2 x Ethernet ports for networking and integrations
Local operation, remote connections and integrations in one device
Available with or without touchscreen
01
Fewer devices
One processor can replace several separate controllers and gateway devices.
02
Fully scalable
The same product works in small properties and demanding industrial sites.
03
Project-specific optimization
The configuration includes only what is needed, without unnecessary features.
04
Faster commissioning
An optimized configuration reduces installation and configuration work.
05
Future-ready
Modules can be changed and added as requirements change.
Actiweb software
Modern browser-based operation
Integral works with Actiweb software. The browser-based interface can be used on different devices without separate installations, which simplifies local operation, remote monitoring and maintenance.
- Building automation, HVAC, energy management and lighting
- Industrial process control
- Remote monitoring and IoT solutions
- Distributed systems that require flexibility
| Feature | Value |
|---|---|
| Processor and memory | Verdin AM62 Dual 1GB ET |
| Touchscreen | 7.1 inch IPS TFT Bar LCD | 280×1424 Pixels |
| Network connections | 2 x Ethernet, 4G modem readiness |
| Module slots | 6 freely selectable module slots |
